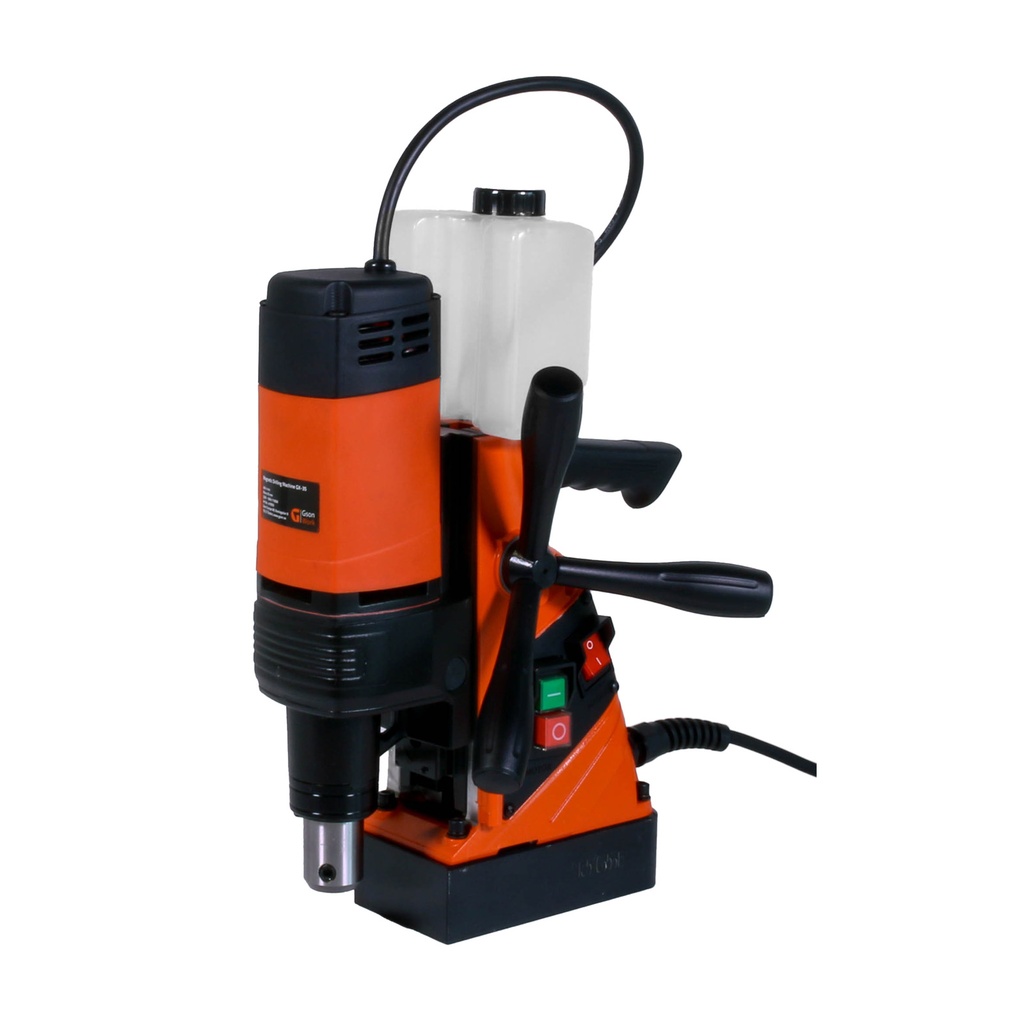

Magnetiline puurmasin GX-35
Compact and powerful single-speed magnetic drilling machine with 3/4" Weldon holder for all-round drilling.
Motor rated power: 1100 W
Load speed: 450 rpm
Tool holder: 19,05 mm (3/4”) Weldon
Magnetic adhesion: 10000 N
The max. cutting dia. (HSS annular cutter): Ø 35 mm (1 3/8”)
The max. cutting depth (annular cutter): 50 mm (2”)
The max. cutting dia. (twist drill): Ø 13 mm (1/2”)
The min cutter depth: 10 mm
Stroke: 120 mm
Motor can adjust the height to: 95 mm
The whole machine size: 275 mm x 190 mm x 400 mm
Magnetic base size: 167 mm x 84 mm x 44 mm
Total weight: 11 kg
Countersunk drilling: 10-35 mm
| Kaubamärk | GSON |
| Pinge (V) | 220V-240V |
